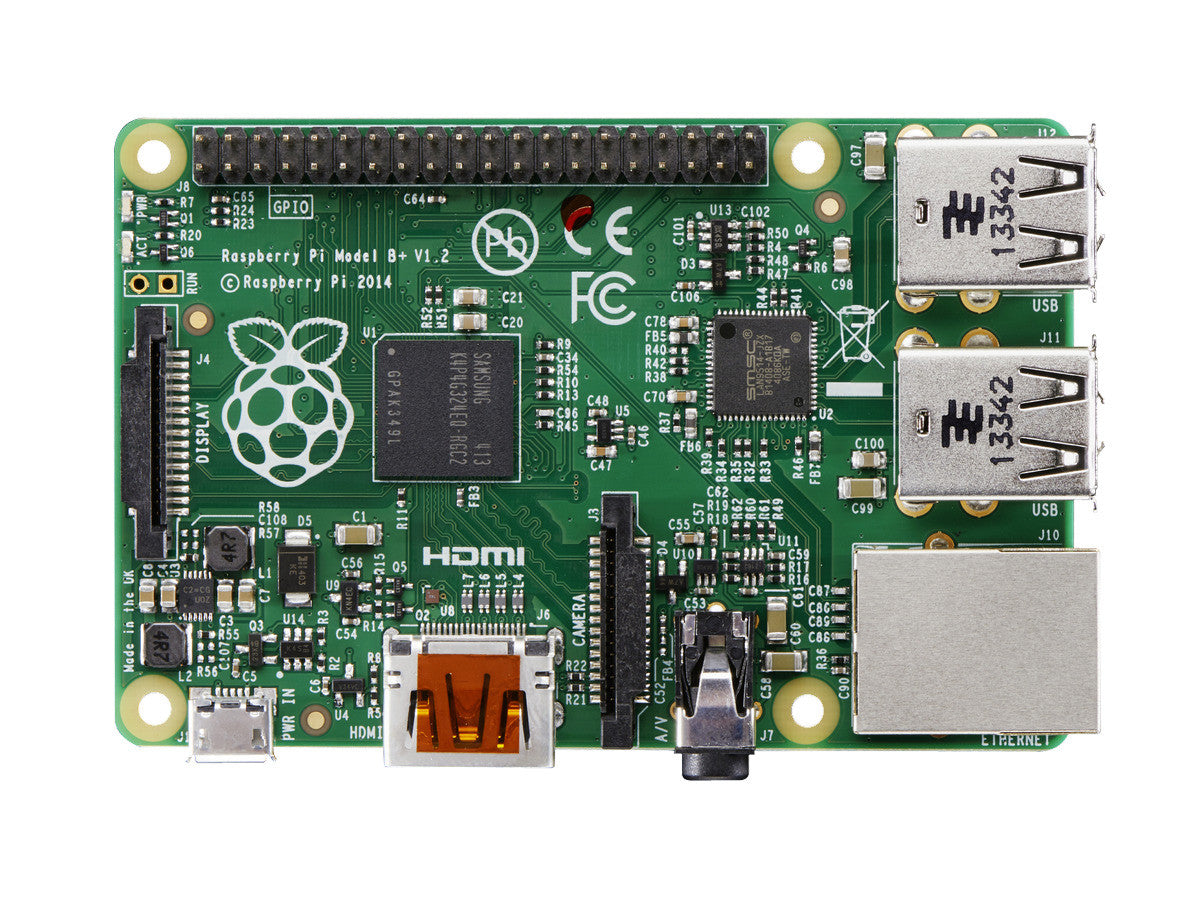

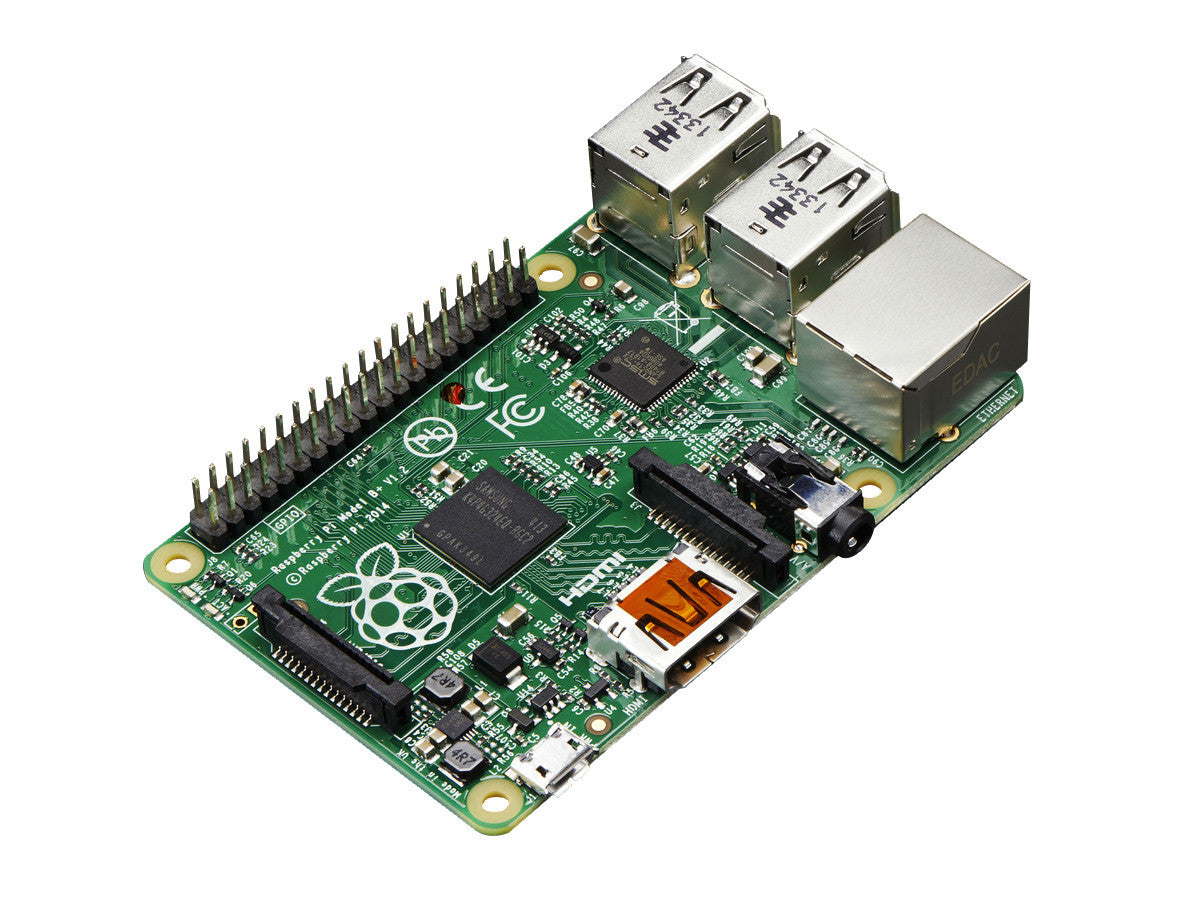

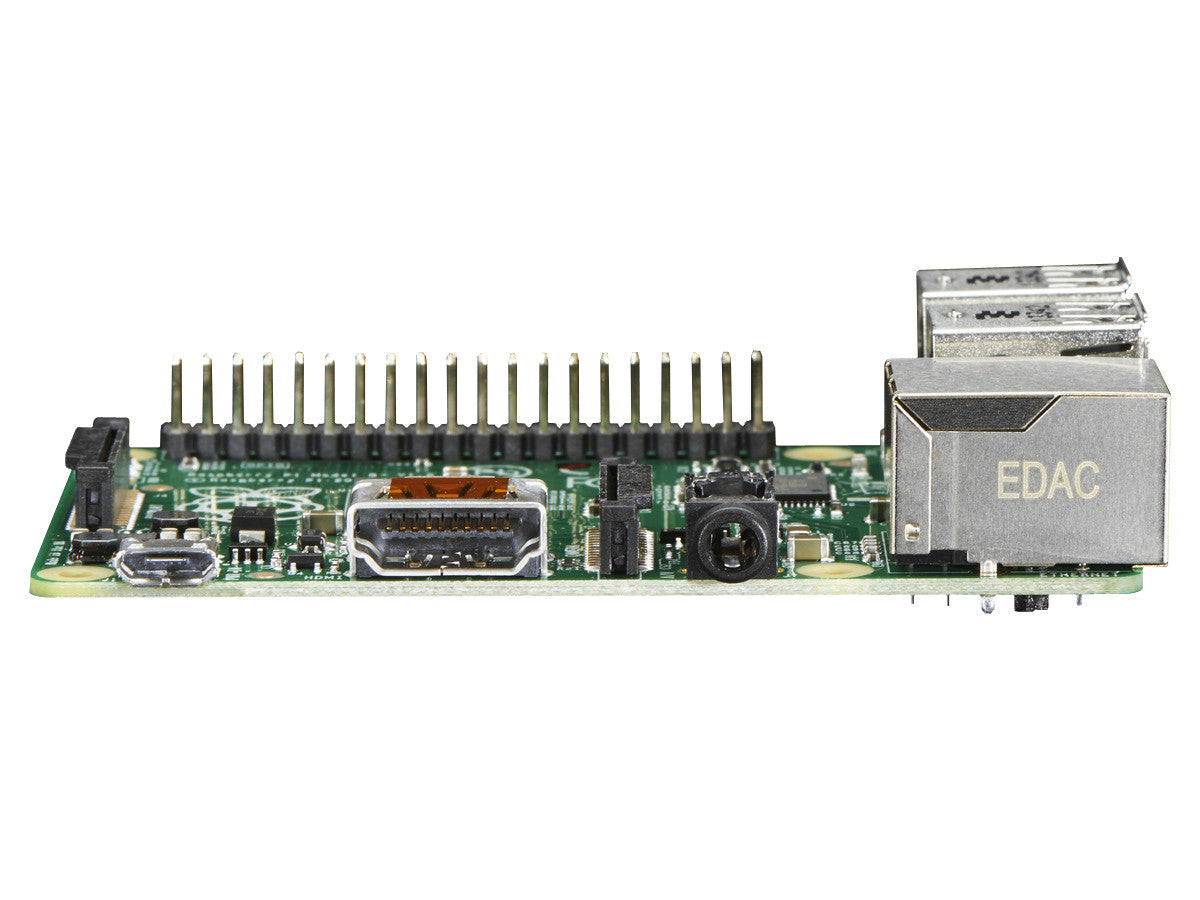

Compared to the Model B, Model B+ has:
- More GPIO. The GPIO header has grown to 40 pins, while retaining the same pinout for the first 26 pins as the Model A and B.

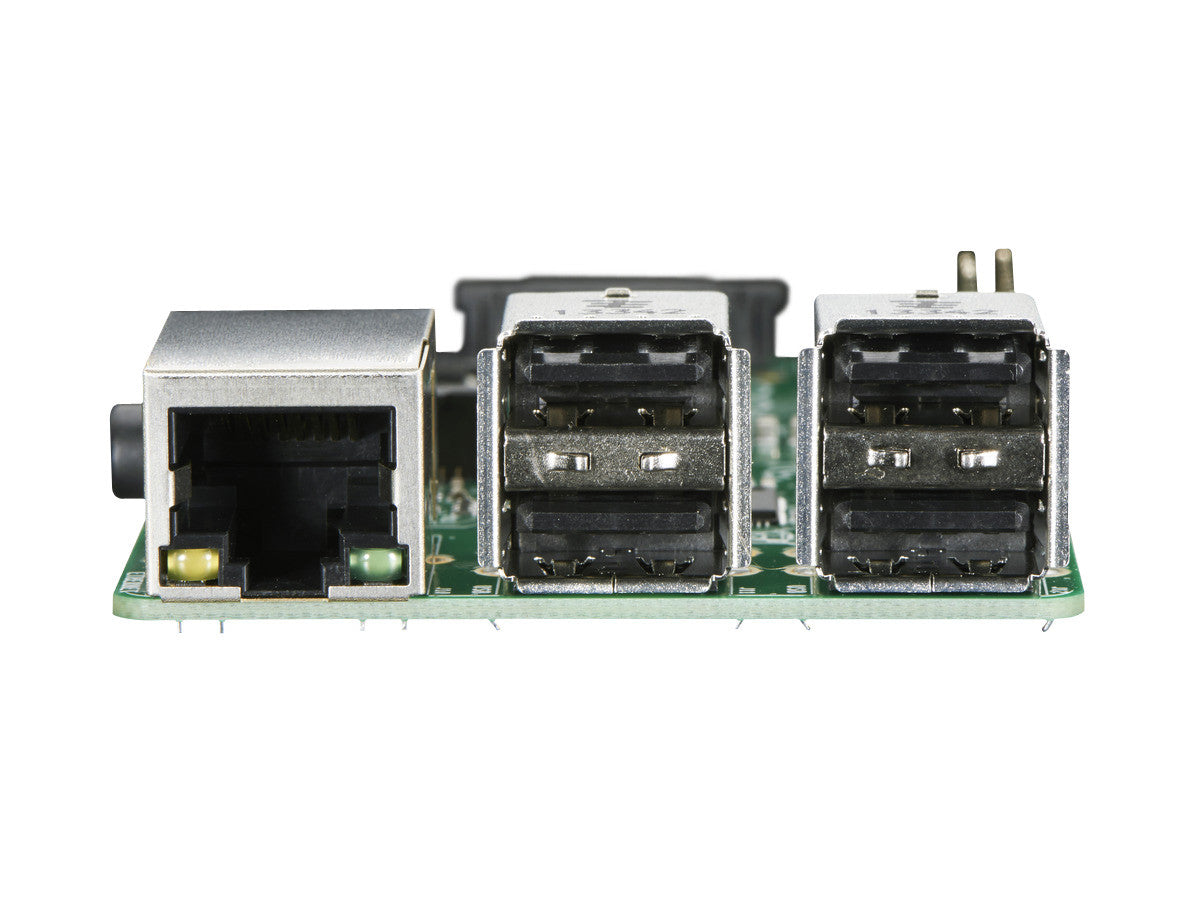

- More USB. We now have 4 USB 2.0 ports, compared to 2 on the Model B, and better hotplug and overcurrent behavior.

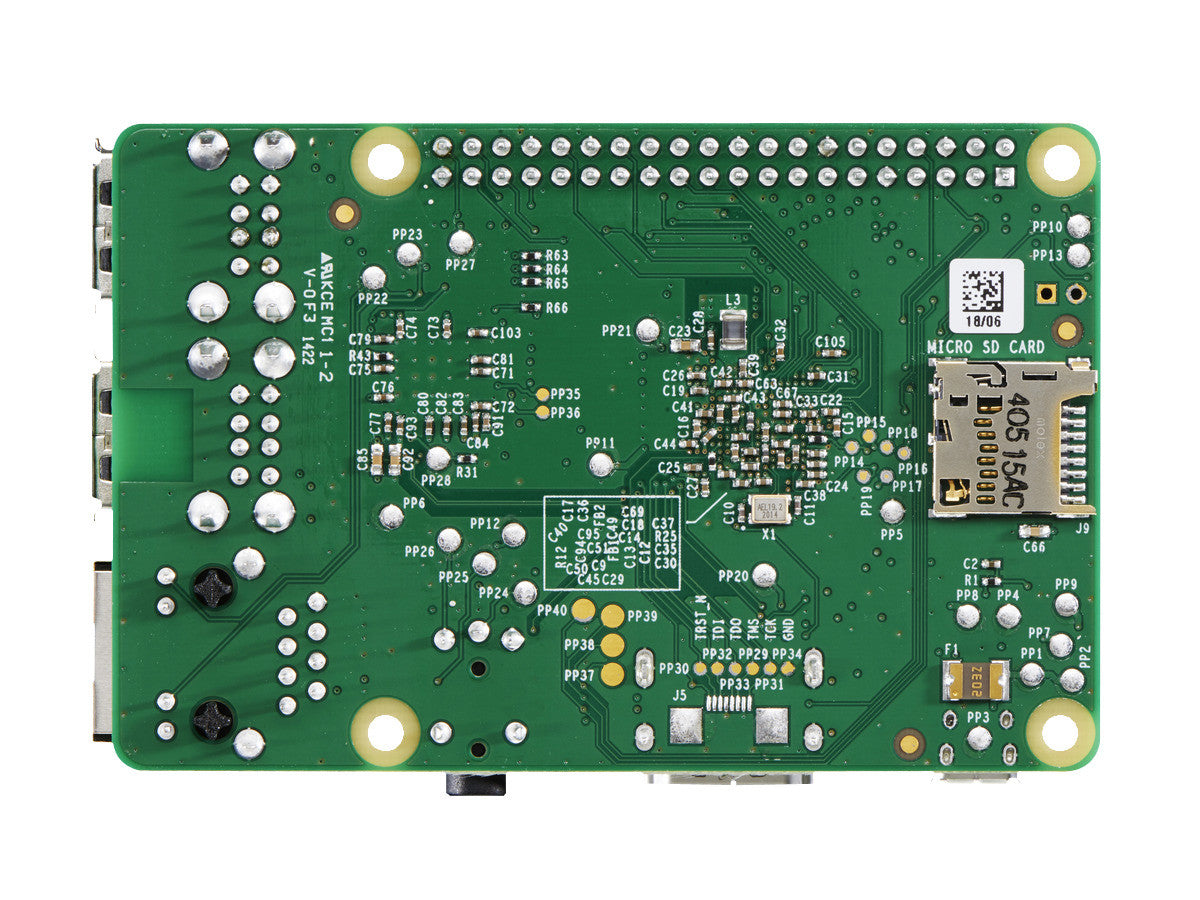

- Micro SD. The old friction-fit SD card socket has been replaced with a much nicer push-push micro SD version.
- Lower power consumption. By replacing linear regulators with switching ones we’ve reduced power consumption by between 0.5W and 1W.
- Better audio. The audio circuit incorporates a dedicated low-noise power supply.
- Neater form factor. We’ve aligned the USB connectors with the board edge, moved composite video onto the 3.5mm jack, and added four squarely-placed mounting holes.
The Model B+ is perfectly suitable for use in schools: it offers more flexibility for learners than the leaner Model A or A+, which are more useful for embedded projects and projects which require very low power, and has more USB ports than the Model B.
Released in July 2014, the Model B+ is an updated revision of the Model B. It increases the number of USB ports to 4 and the number of pins on the GPIO header to 40. In addition, it has improved power circuitry which allows higher powered USB devices to be attached and now hot-plugged. The full size composite video connector has been removed and the functionality moved to the 3.5mm audio/video jack. The full size SD card slot has also been replaced with a much more robust microSD slot.
The following list details some of the improvements over the Model B.
- Current monitors on the USB ports mean the B+ now supports hot-plugging
- Current limiter on the 5V for HDMI means HDMI cable-powered VGA converters will now all work
- 14 more GPIO pins
- EEPROM readout support for the new HAT expansion boards
- Higher drive capacity for analog audio out, from a separate regulator, which means a better audio DAC quality
- No more backpowering problems, due to the USB current limiters which also inhibit back flow, together with the "ideal power diode"
- Composite output moved to 3.5mm jack
- Connectors now moved to two sides of the board rather than the four of the original device
- Ethernet LEDs moved to the ethernet connector
- 4 squarely-positioned mounting holes for more rigid attachment to cases etc.
The power circuit changes also means a reduction in power requirements of between 0.5W and 1W.
Schematics for Raspberry Pi B+ Board:
Processor: The Broadcom chip used in the Raspberry Pi Model B+
Please refer to following for more details:
Mechanical drawings of the Raspberry Pi Model B+
